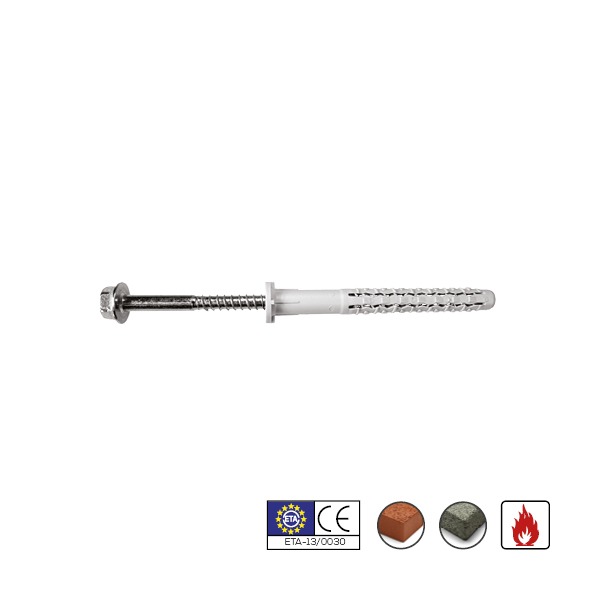

TNFAM F - Frame Anchor Option 7 - Hex Flange Head

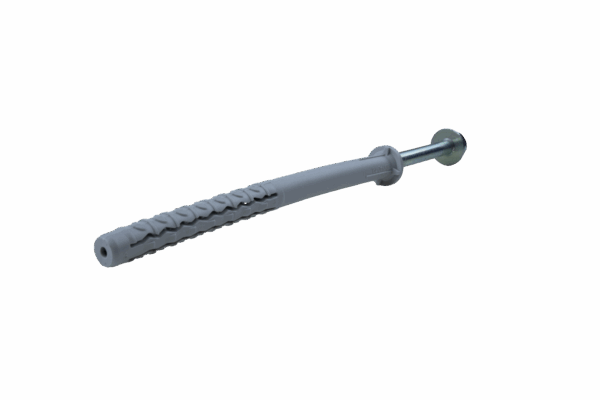

TNFAM F - Frame Anchor Option 7 - Hex Flange Head - Image 2

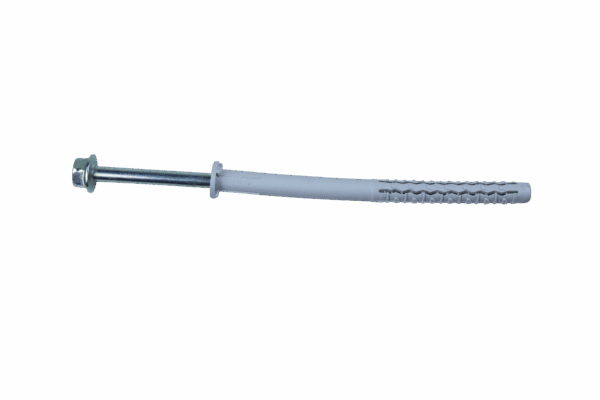

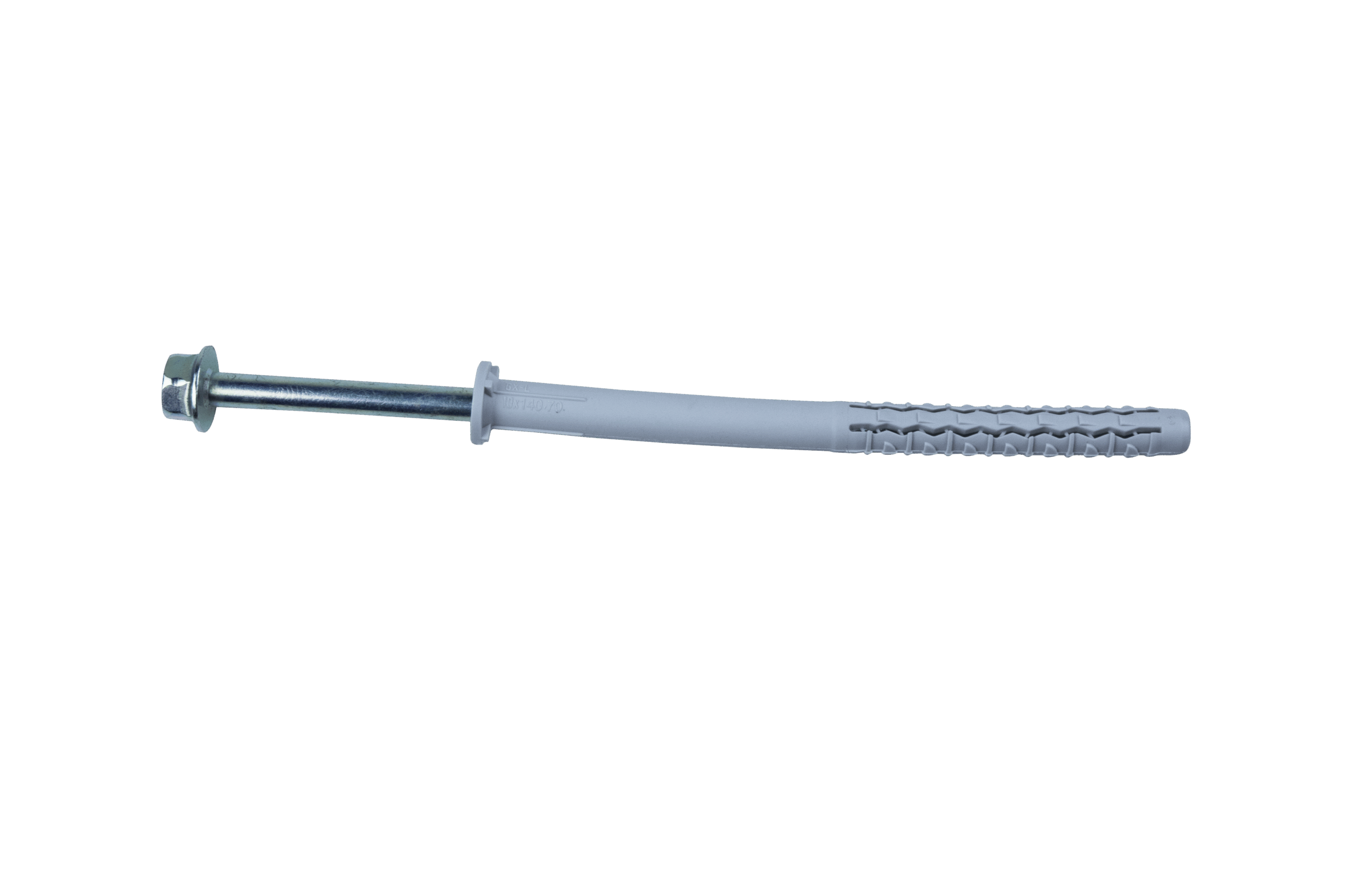

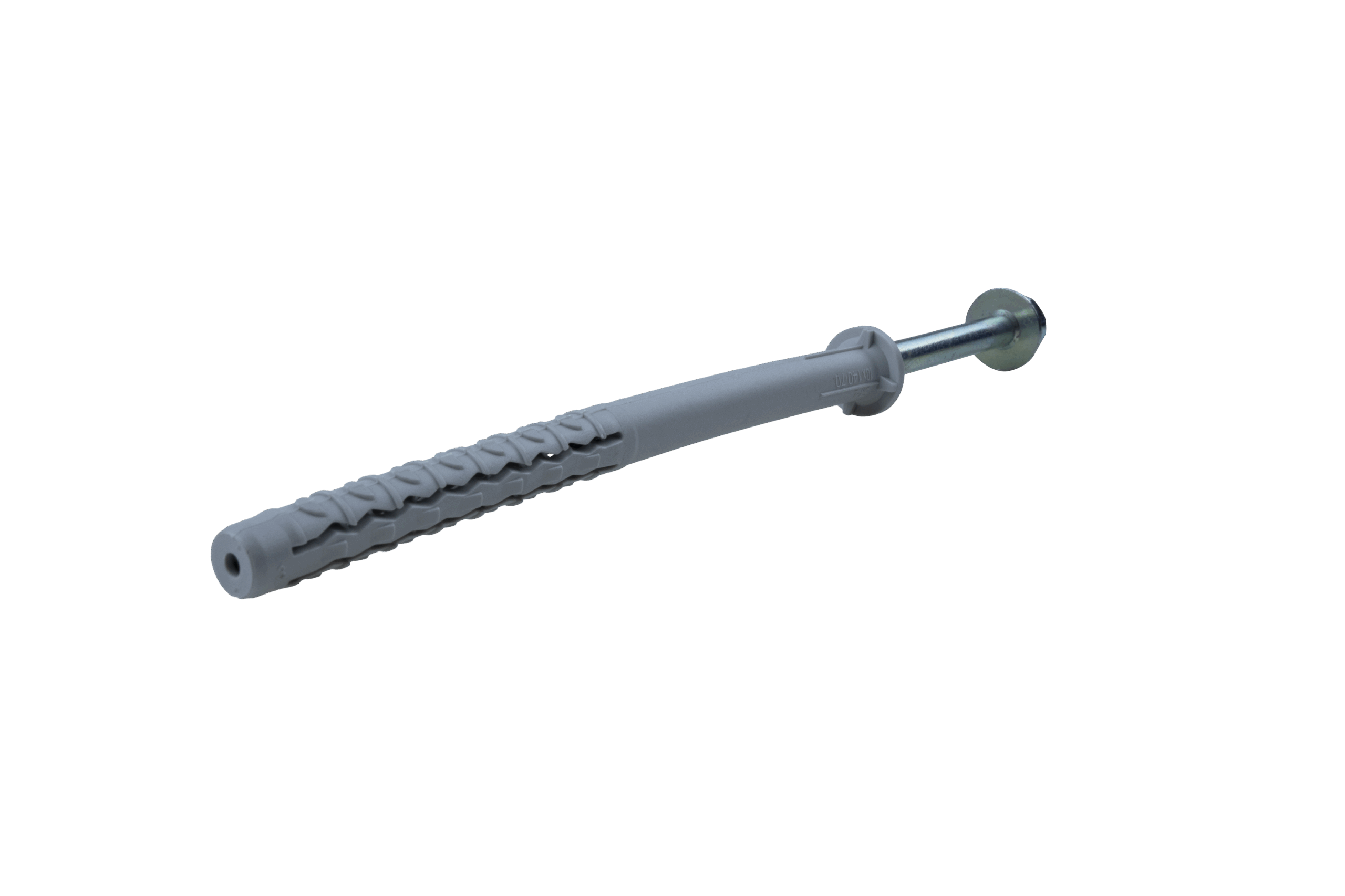

TNFAM F – Frame Anchor Option 7 – Hex Flange Head

The Trutek TNFAM Multi-Expansion Frame Anchor is a high-performance nylon anchor engineered for secure and durable fixings in solid base materials such as concrete, solid brick, and stone. Its multi-expansion design ensures optimal load distribution, making it ideal for structural and non-structural applications.

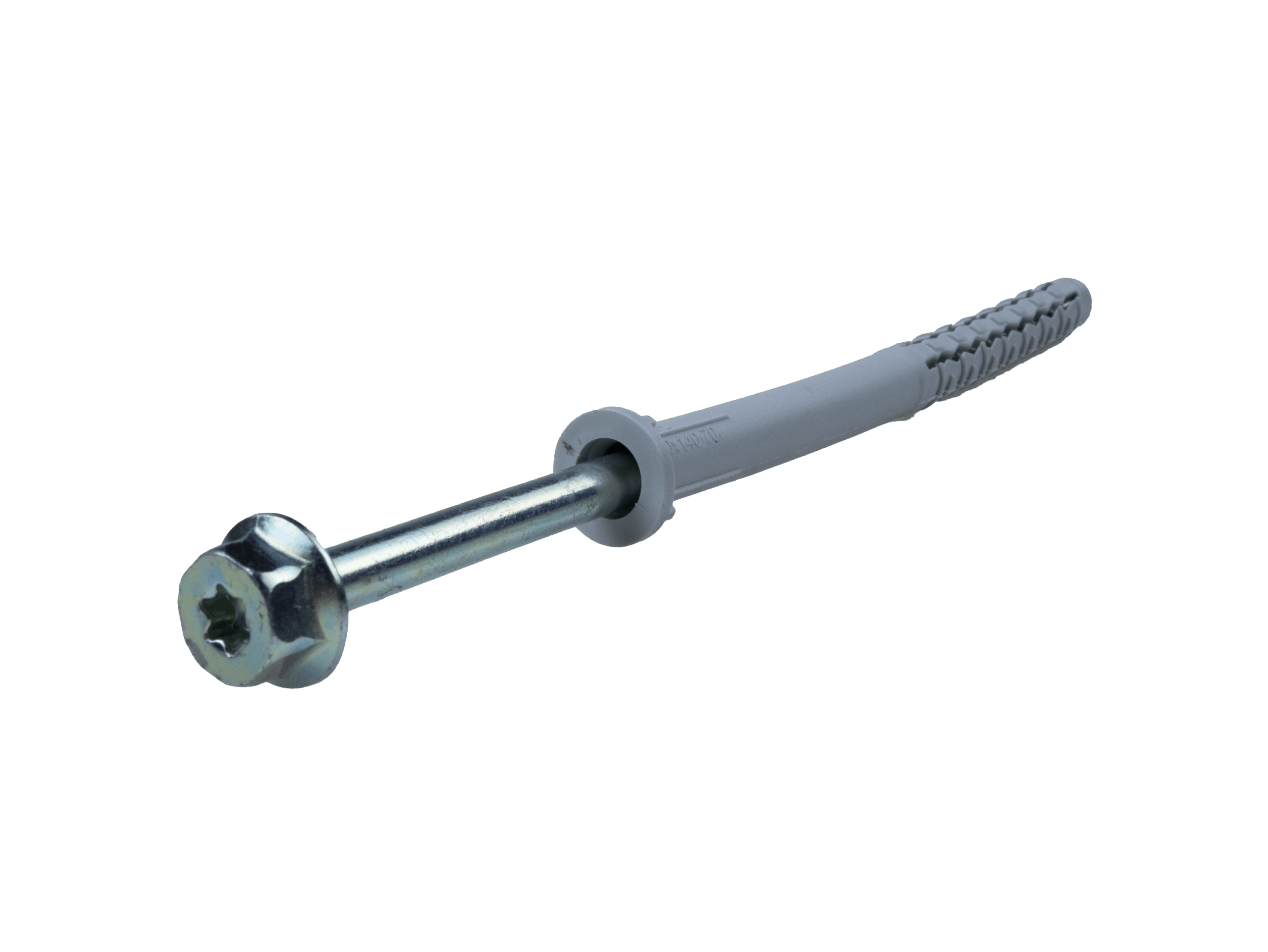

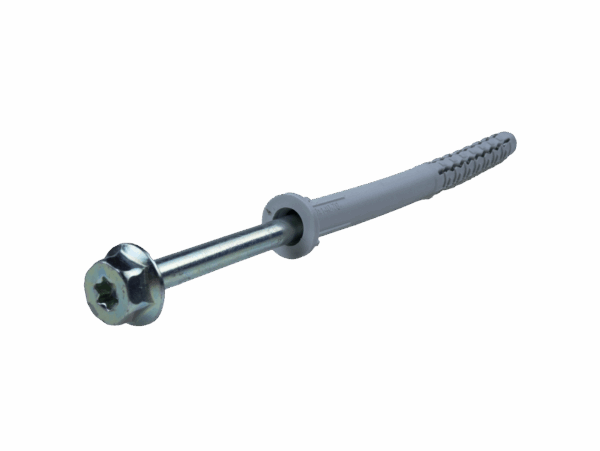

Hex Head with TORX socket.

Product Information

Usage

Fixing door and window frames in construction projects.
Securing wooden battens, beams, and balustrades.
Mounting metal profiles and brackets in masonry substrates.
Suitable for both indoor and outdoor installations requiring reliable anchoring solutions.

Benefits

Multi-Expansion Design: Provides enhanced load-bearing capacity and secure anchoring in various substrates.
Material Composition: Constructed with a high-quality nylon sleeve and a galvanized steel screw, offering corrosion resistance and durability.
Versatile Head Options: Available with countersunk (PZ3), hexagonal (HEX), and Torx (TORX40) heads to suit different installation requirements.
Temperature Resistance: Performs reliably in temperatures ranging from -40°C to +80°C.
Fire Resistance: Non-flammable, making it suitable for installations requiring fire-resistant fixings.
European Technical Assessment (ETA): Certified for use in cracked and non-cracked concrete, ensuring compliance with European standards.

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Length (mm)	Max. Fixture Thickness (mm)	Min. Hole Depth (mm)	Screw Diameter (mm)	Screw Length (mm)	Box Packing	Outer Packing
TNFAM10080F	10	80	10	70	7,0	85	50	400
TNFAM10100F	10	100	30	70	7,0	105	50	400
TNFAM10120F	10	120	50	70	7,0	125	25	200
TNFAM10140F	10	140	70	70	7,0	145	25	200
TNFAM10160F	10	160	90	70	7,0	165	25	200
