TAB F – Concrete Bolt Hex Flange Head ETA Option 7 BZP

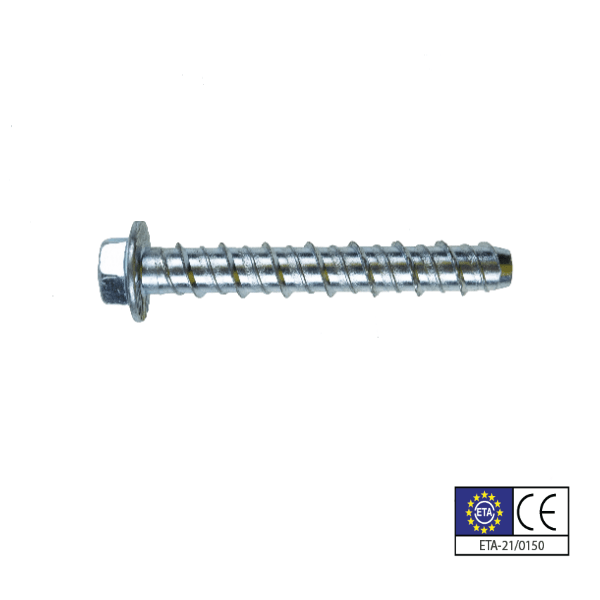

The Trutek TAB F Concrete Bolt is a high-performance mechanical anchor designed for secure and reliable fastening in non-cracked concrete substrates. Its robust construction and versatile design make it suitable for a wide range of construction applications.

Product Information

Usage

Fastening structural elements, facades, barriers, and handrails.
Securing storage rack feet and installation elements to floors.
Temporary fastening of formwork supports and prefabricated walls.

Benefits

Versatility: Suitable for non-cracked concrete substrates.
Efficiency: Installation is up to twice as fast compared to segment anchors, saving time on the job site.
Adjustability: Allows for adjustment of the fixed element and complete disassembly of the anchor if needed.
Load Distribution: The anchor design ensures even load distribution along the entire depth of the hole, minimizing stress concentrations.

Product Details

Product code	Drill hole Diameter (mm)	Thread diameter (mm)	Anchor Length (mm)	Max fixture thickness (mm)	Min embed. Depth (mm)	Min. hole depth (mm)	Hex head dia A/F (mm)	Box Packing
TAB06050F*	6	8	50	20	30	40	10	100
TAB06075F*	6	8	75	45	30	40	10	100
TAB06100F*	6	8	100	70	30	40	10	100
TAB06130F*	6	8	130	100	30	40	10	100
TAB06150F*	6	8	150	120	30	40	10	100
