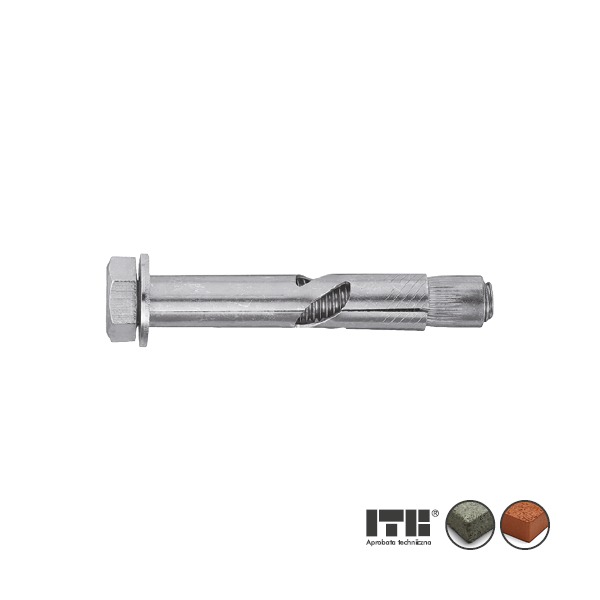

TS H – Sleeve Anchor Hex Bolt

The Trutek TS Sleeve Anchor is a torque-controlled expansion anchor designed for reliable fastening in solid base materials such as non-cracked concrete and full brick. Its versatile design makes it suitable for a wide range of medium-duty applications in construction and installation projects.

Product Information

Usage

Securing handrails, barriers, and guardrails.
Fastening shelves, steel profiles, and installations.
Fixing facade profiles and wooden slats.
Attaching wood-based panels and other fixtures to solid substrates.

Benefits

Versatility: Suitable for use in both concrete and full brick substrates.
Ease of Installation: Simple installation process with the ability to dismantle if needed.
Reliable Performance: Provides consistent load-bearing capacities for medium-duty applications.
Corrosion Resistance: Zinc coating enhances durability and longevity.

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Length (mm)	Max. Fixture Thickness (mm)	Min. Hole Depth (mm)	Box Packing	Outer Packing
TS08045H	8	45	8	40	100	1200
TS08070H	8	70	30	40	50	600
TS08090H	8	90	50	40	50	600
TS10055H	10	55	10	45	50	600
TS10080H	10	80	35	45	50	400
TS10100H	10	100	60	45	50	400
TS12065H	12	65	1	55	50	300
TS12080H	12	80	25	60	50	300
TS12100H	12	100	45	60	20	160
TS16075H	16	75	15	60	25	125
TS16110H	16	110	55	65	10	125
