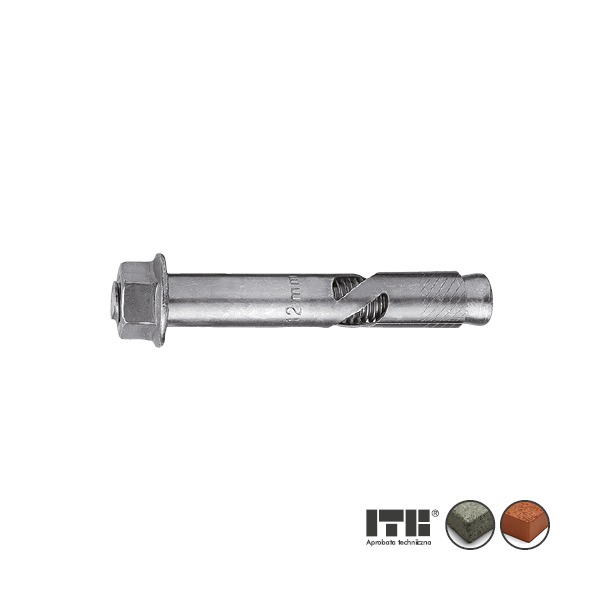

TS – Sleeve Anchor Hex Nut

The Trutek TS Sleeve Anchor is a torque-controlled expansion anchor designed for reliable fastening in solid base materials such as non-cracked concrete and full brick. Its versatile design makes it suitable for a wide range of medium-duty applications in construction and installation projects.

Product Information

Usage

Securing handrails, barriers, and guardrails.
Fastening shelves, steel profiles, and installations.
Fixing facade profiles and wooden slats.
Attaching wood-based panels and other fixtures to solid substrates.

Benefits

Versatility: Suitable for use in both concrete and full brick substrates.

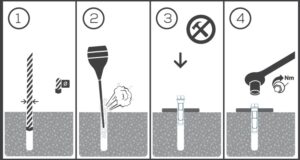

Ease of Installation: Simple installation process with the ability to dismantle if needed.
Reliable Performance: Provides consistent load-bearing capacities for medium-duty applications.
Corrosion Resistance: Zinc coating enhances durability and longevity.

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Length (mm)	Max. Fixture Thickness (mm)	Min. Hole Depth (mm)	Box Packing	Outer Packing
TS08065	8	65	30	4	50	600
TS08090	8	90	55	40	50	600
TS10075	10	75	35	45	50	400
TS10100	10	100	60	45	50	400
TS10125	10	125	85	45	50	400
TS12075	12	75	20	55	50	300
TS12100	12	100	50	55	25	200
TS12125	12	125	75	55	25	200
TS16065	16	65	15	60	25	125
TS16110	16	110	55	60	10	125
TS16145	16	145	85	60	10	80
TS20080	20	80	20	65	10	100
TS20115	20	115	55	65	10	50
TS20160	20	160	100	65	10	50
