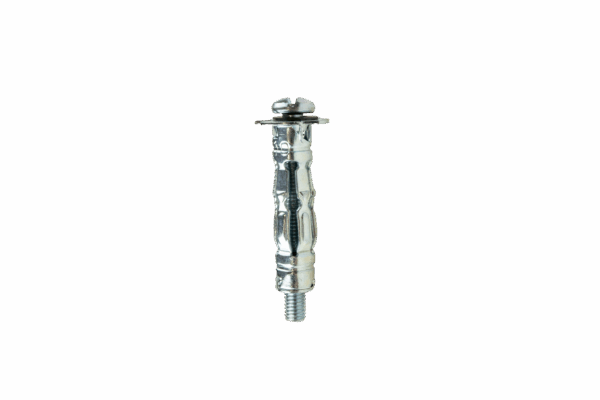

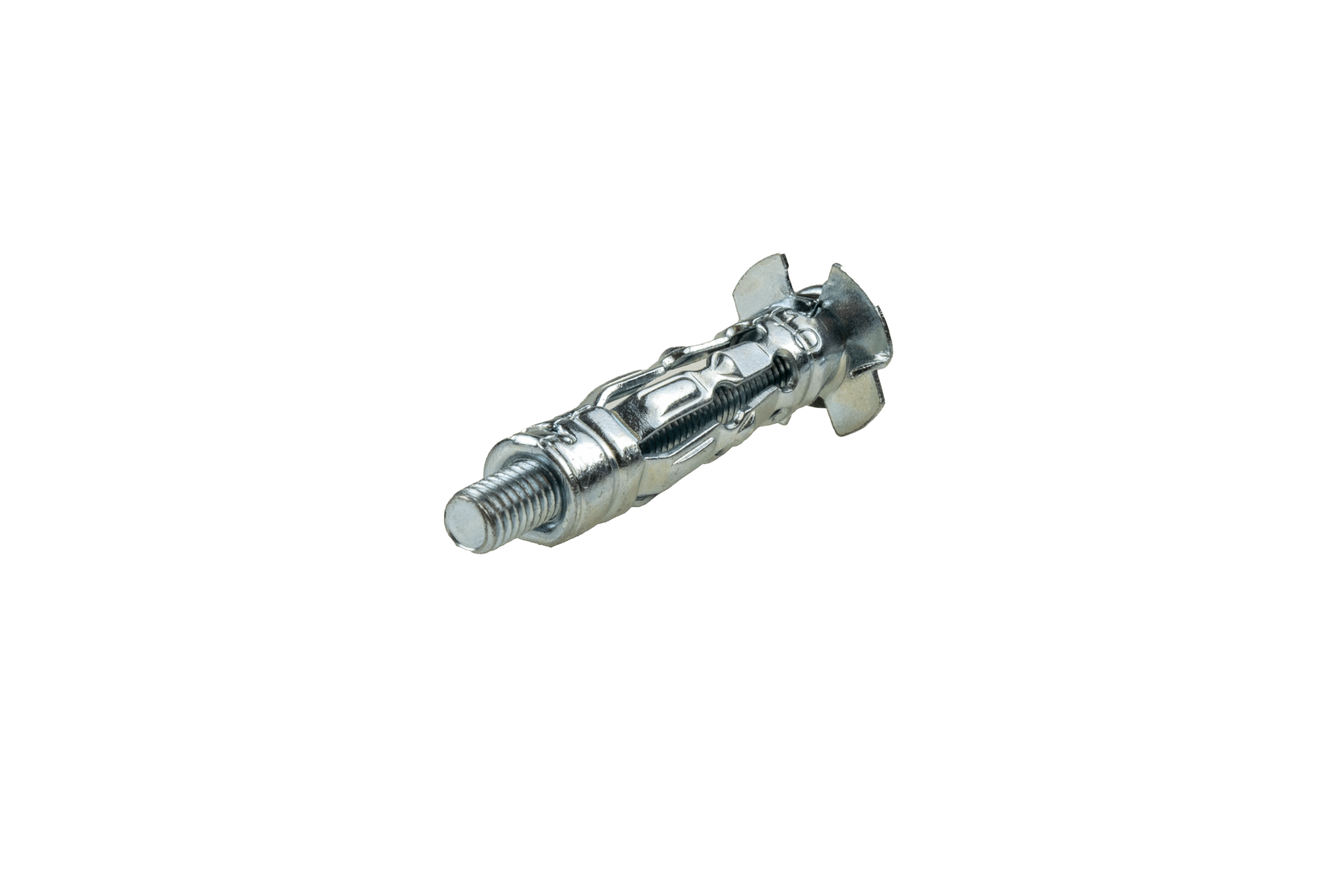

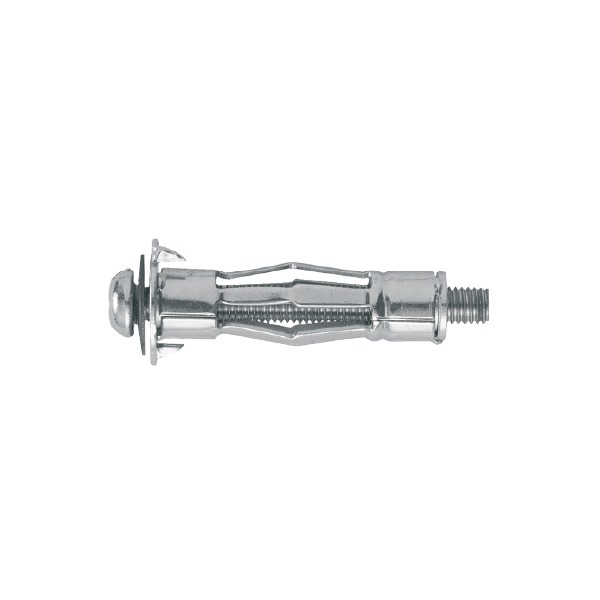

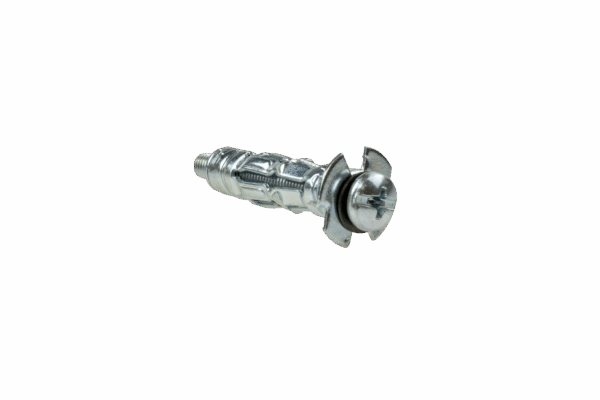

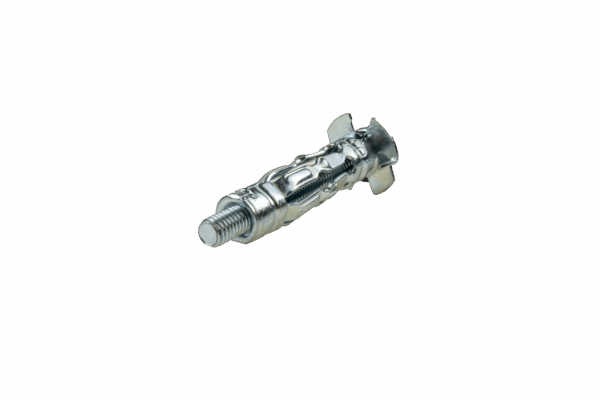

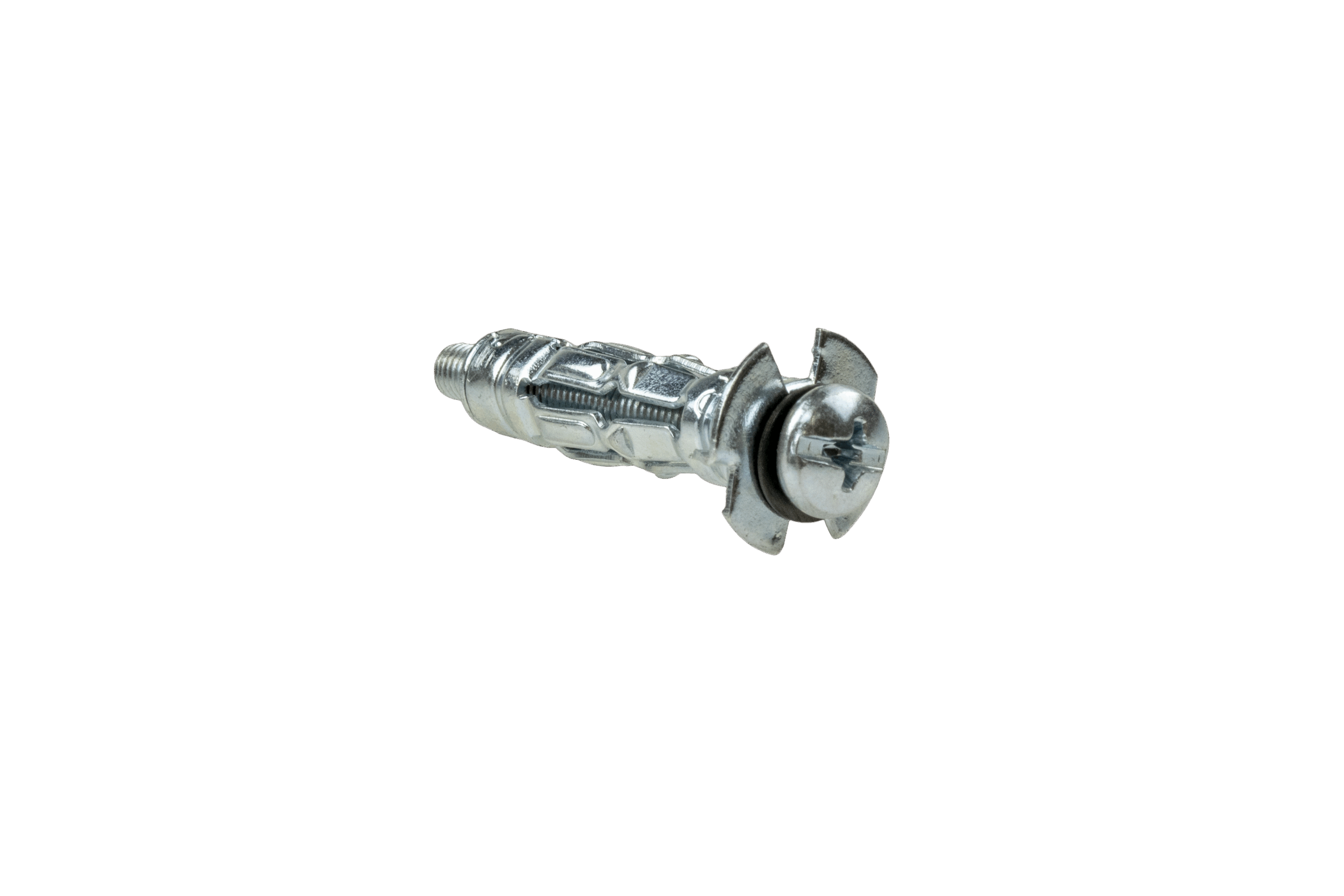

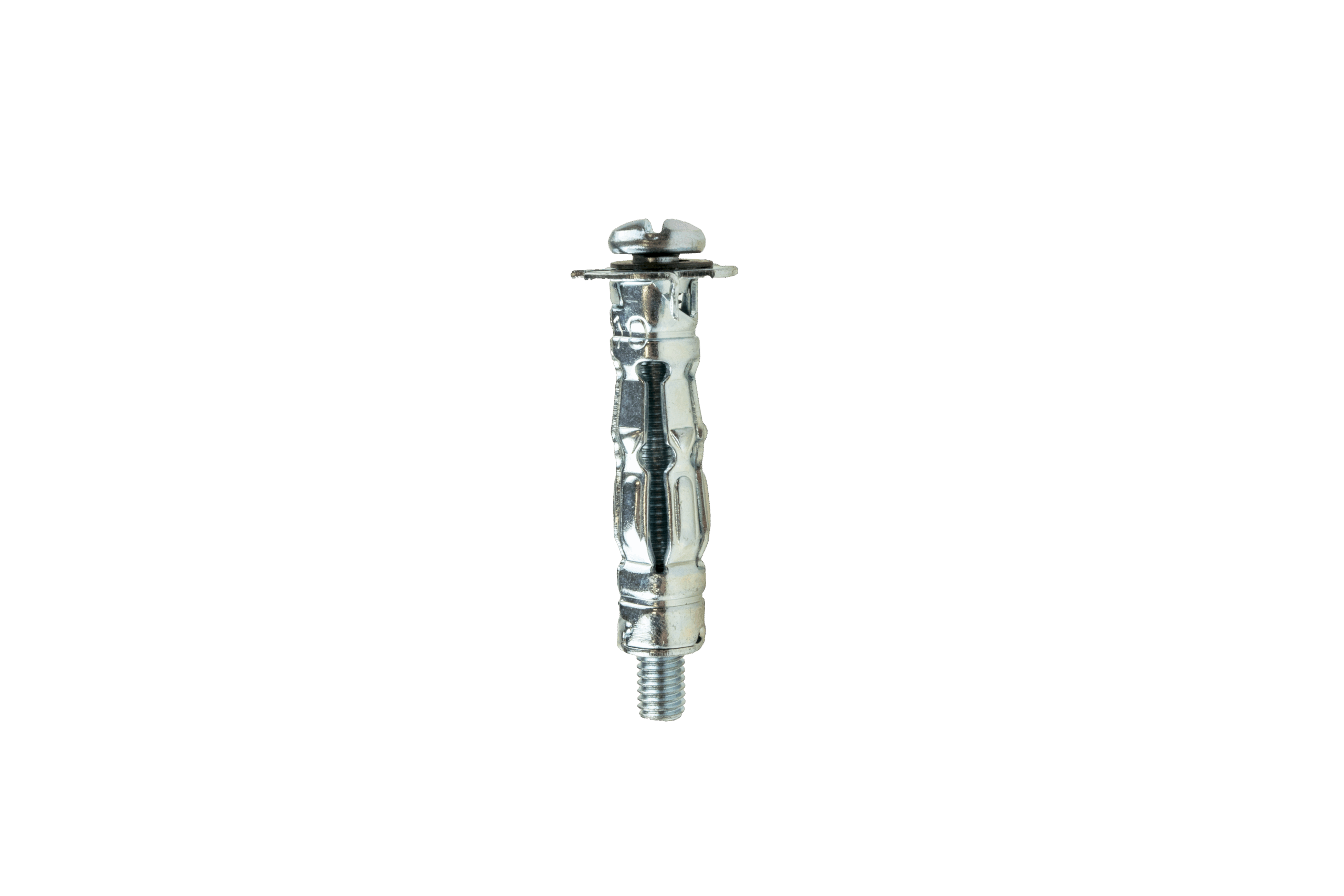

THW – Hollow Wall Anchor

The Trutek THW Hollow Wall Anchor is a metal cavity fixing designed for secure and reliable installation in plasterboard and other hollow wall materials. It provides a strong, vibration-resistant hold for light-duty applications by expanding behind the wall surface during installation.

Product Information

Usage

ideal for mounting in thin walls, behind which there is a void,
fixing pictures, devices, lighting, furniture, shelves, curtain rods, wooden and cable strips to plasterboards,
fixing of fireproof cabling.

Benefits

anti-rotation lock during installation,
four support arms increase the clamping radius,
simple and quick assembly and disassembly,
wide pad increases pressure distribution and covers any irregularities in the holes made,
corrosion protection against galvanizing.
non-flammable fixing.

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Length (mm)	Max. Fixture Thickness (mm)	Wall Thickness (mm)	Box Packing	Outer Packing
THW04025	8	25	8	0 – 5	200	3200
THW04045	8	45	16	8 – 16	100	1600
THW04050	8	50	17	16 – 23	100	1600
THW04065	8	65	20	18 – 32	100	1600
THW05045	10	45	17	6 – 13	100	1600
THW05060	10	60	26	8 – 16	100	1600
THW05070	10	70	30	16 – 32	100	800
THW06060	13	60	35	7 – 16	100	800
THW06070	13	70	30	16 – 32	100	800
