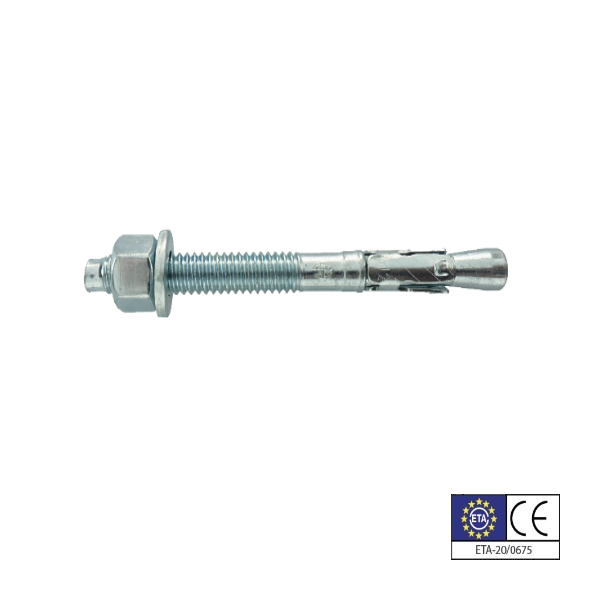

TT – Throughbolt ETA Option 7 Non-Crack Approved

The Trutek TT Throughbolt is a high-performance mechanical anchor designed for secure fastening in non-cracked concrete, making it ideal for medium-load applications in construction and infrastructure projects.

Zinc plated anchors for internal use only, for any concerns please contact your Trutek representative.

Product Information

Usage

Structural Components: Securing building elements such as facades, barriers, and handrails.
Storage Systems: Anchoring the feet of storage racks and shelving units.
Mechanical and Electrical Installations: Fixing devices and installation elements to ceilings and walls, particularly in non-cracked concrete.
Interior Installations: Serving as a basic anchor for various types of installations within buildings.

Benefits

Versatile Application: Suitable for anchoring structural elements such as facades, barriers, handrails, storage racks, and installations in concrete classes ranging from C20/25 to C50/60.
Material & Coating: Constructed from carbon steel with a mechanical property class of at least 4.8, and coated with a zinc layer of no less than 5 µm for corrosion resistance.
Fire Resistance: Tested and certified for fire resistance ratings from R30 to R120, ensuring reliability in high-temperature scenarios.
Ease of Installation: Features a cold-formed body and an expansion clip with ribs, allowing for quick and straightforward installation.
Available in diameters M8 – M20 and lengths from 50mm up to 260mm

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Length (mm)	Max. Fixture Thickness (mm)	Min. Hole Depth (mm)	Box Packing	Outer Packing
TT08050	8	50	–	43	200	800
TT08065	8	65	–	43	100	400
TT08080	8	80	25	43	100	400
TT08090	8	90	35	43	100	400
TT08100	8	100	45	43	100	400
TT08115	8	115	60	43	100	200
TT08130	8	130	75	43	50	200
TT10065	10	65	–	48	100	400
TT10075	10	75	10	48	100	400
TT10090	10	90	25	48	50	200
TT10105	10	105	40	48	50	200
TT10120	10	120	55	48	50	200
TT12080	12	80	–	60	50	200
TT12100	12	100	20	60	50	200
TT12120	12	120	40	60	25	100
TT12140	12	140	60	60	25	100
TT12180	12	180	100	60	25	100
TT16105	16	105	–	79	25	100
TT16125	16	125	20	79	20	80
TT16150	16	150	45	79	20	80
TT16175	16	175	70	79	20	80
TT16200	16	200	95	79	15	60
TT16220	16	220	115	79	15	60
TT16240	16	240	135	79	10	40
TT20130	20	130	5	90	15	60
TT20160	20	160	35	90	10	40
TT20220	20	220	95	90	10	40
TT20240	20	240	115	90	5	20
