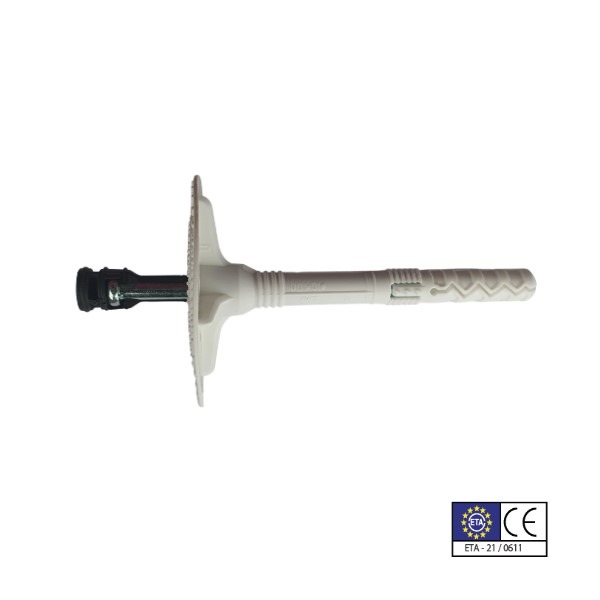

TIA MPLE – Polymide Insulation Fixing – Long Expanding Zone – Metal Pin

The Trutek TIA PPSE Insulation Anchor is a polymide (plastic) fixing designed specifically for securing insulation boards to substrates like concrete, brick, and masonry. Featuring a long expansion plastic anchor body with a built-in washer and a steel nail. Its lightweight and corrosion‑free construction make it ideal for thermal insulation façade systems.

Product Information

Usage

Fixing expanded polystyrene (EPS) or mineral wool boards in External Thermal Insulation Composite Systems (ETICS).
Securing insulation panels in renovation or new construction façades.
Anchoring insulation beneath ventilated cladding or rendering systems.
Attaching boards in roof insulation systems, such as concrete parapets or flat rooftops.
Installation in various wall structures—reinforced concrete, solid brick, silicate brick, and aerated blocks.

Benefits

Corrosion‑Free & UV‑Stable: Made from weather-resistant polypropylene—durable in outdoor exposure.
Fast & Clean Installation: Universal head and pre-mounted washer enable rapid hammer-fixing without drilling.
Thermal Efficiency Friendly: Plastic design avoids thermal bridging by eliminating cold-conductive metal components.
Versatile Substrate Compatibility: Effective in both solid and lightweight substrates; pre-sets automatically during installation.
Cost‑Effective: Lightweight and stackable, reducing transport and handling costs while ensuring consistent fixing depth.

Product Details

Product Reference	Drill Hole Diameter (mm)	Anchor Length (mm)	Anchor Depth (mm)	Suitable for Insulation thickness	Outer Packing
TIA10140MPLE	10	140	50	50-60	200
TIA10160MPLE	10	160	50	70-80	200
TIA10180MPLE	10	180	50	90-100	200
TIA10200MPLE	10	200	50	110-120	200
TIA10220MPLE	10	220	50	130-140	200
TIA10260MPLE	10	260	50	170-180	100
