TIA PPSE – Polymide Insulation Fixing – Short Expanding Zone – Polymide Pin

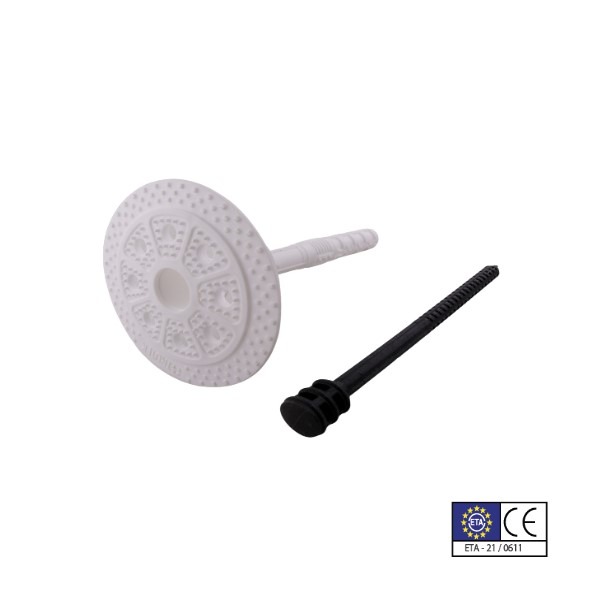

The Trutek TIA PPSE Insulation Anchor is a polymide (plastic) fixing designed specifically for securing insulation boards to substrates like concrete, brick, and masonry. Featuring a short expansion plastic anchor body with a built-in washer and a plastic nail. Its lightweight and corrosion‑free construction make it ideal for thermal insulation façade systems.

Product Information

Usage

Fixing expanded polystyrene (EPS) or mineral wool boards in External Thermal Insulation Composite Systems (ETICS).
Securing insulation panels in renovation or new construction façades.
Anchoring insulation beneath ventilated cladding or rendering systems.
Attaching boards in roof insulation systems, such as concrete parapets or flat rooftops.
Installation in various wall structures—reinforced concrete, solid brick, silicate brick, and aerated blocks.

Benefits

Corrosion‑Free & UV‑Stable: Made from weather-resistant polypropylene—durable in outdoor exposure.
Fast & Clean Installation: Universal head and pre-mounted washer enable rapid hammer-fixing without drilling.
Thermal Efficiency Friendly: Plastic design avoids thermal bridging by eliminating cold-conductive metal components.
Versatile Substrate Compatibility: Effective in both solid and lightweight substrates; pre-sets automatically during installation.
Cost‑Effective: Lightweight and stackable, reducing transport and handling costs while ensuring consistent fixing depth.

Product Details

Product Reference	Drill Hole Diameter (mm)	Anchor Length (mm)	Anchor Depth (mm)	Suitable for Insulation thickness	Outer Packing
TIA10070PPSE	10	80	50	10-20	200
TIA10090PPSE	10	90	50	30-40	200
TIA10100PPSE	10	100	50	40-50	200
TIA10120PPSE	10	120	50	60-70	200
TIA10140PPSE	10	140	50	80-90	200
TIA10160PPSE	10	160	50	100-110	200
TIA10180PPSE	10	180	50	120-130	200
TIA10200PPSE	10	200	50	140-150	200
TIA10220PPSE	10	220	50	150-170	200
TIA10260PPSE	10	260	50	200-210	200
