TETX MS – Insulation Fixing – Metal Screw

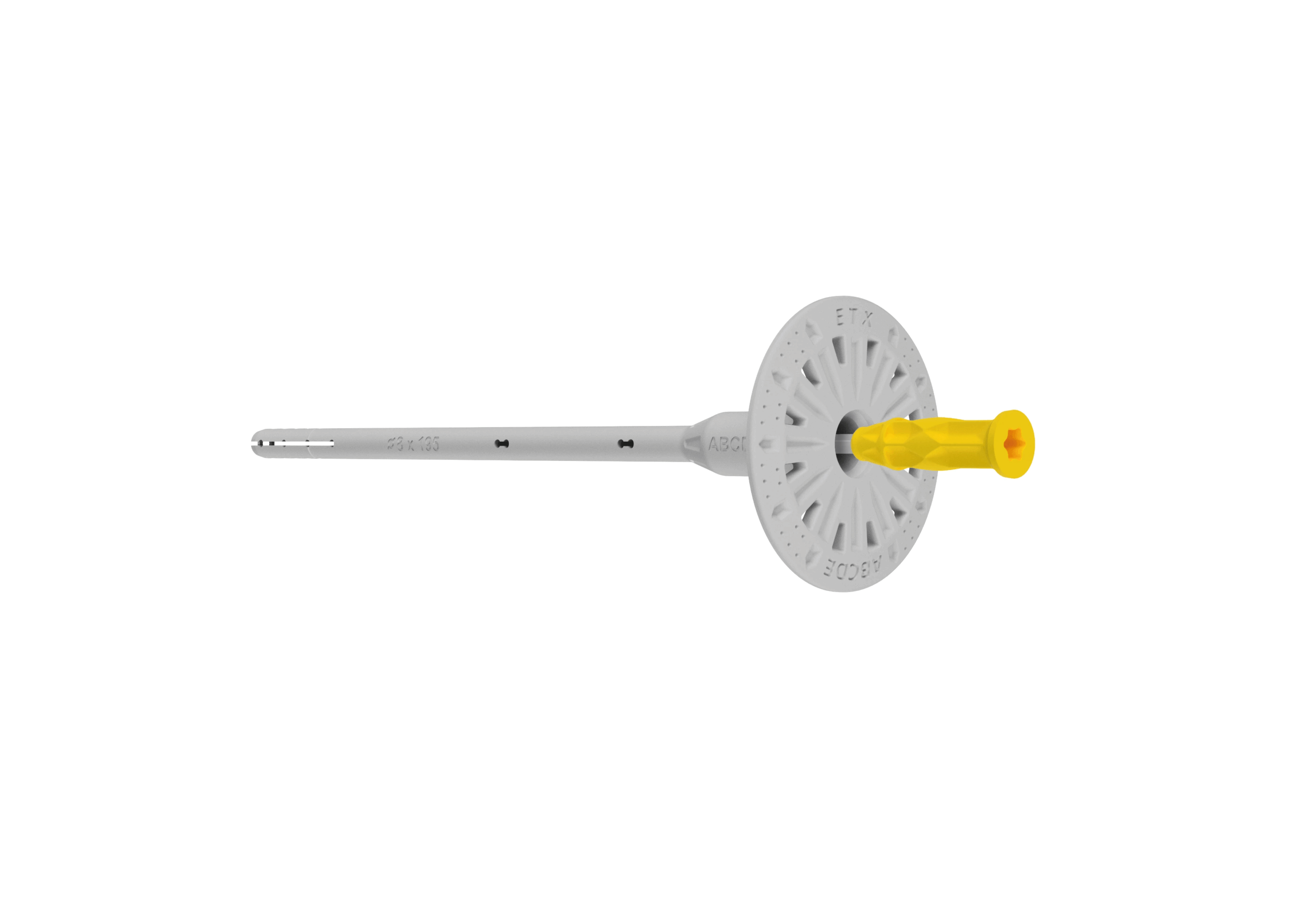

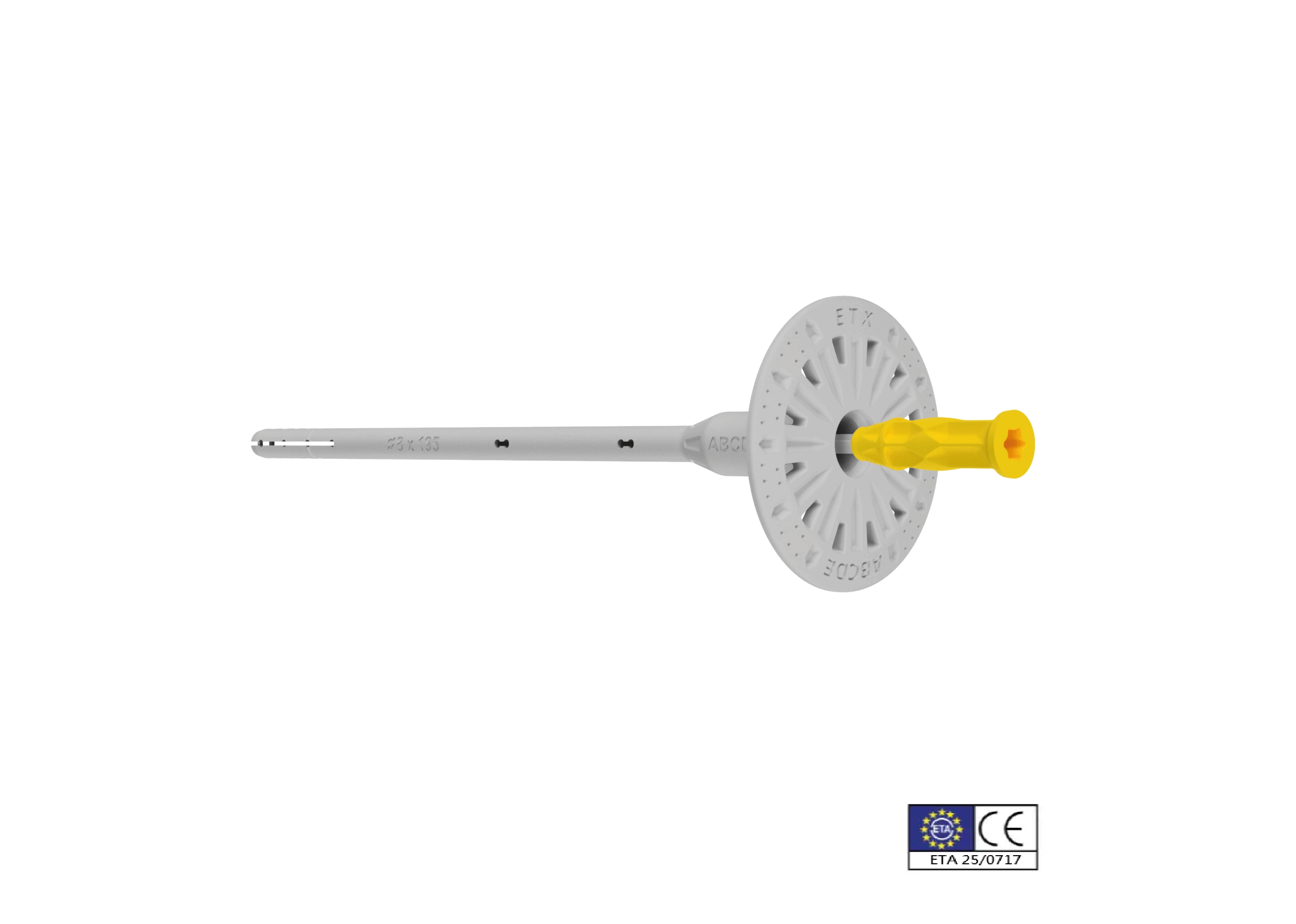

The Trutek ETX‑MS is an 8 mm polypropylene insulation anchor featuring a steel Screw coated with plastic insulation. It securely fastens insulation boards in External Thermal Insulation Composite Systems (ETICS) on concrete and masonry substrates. It holds European Technical Assessment, ensuring certified performance.

Product Information

Usage

Fixing EPS or mineral wool boards in ETICS façade systems.
Use on reinforced concrete, solid brick, silicate blocks, and aerated concrete in both new builds and renovations.
Attaching insulation under roof parapets or ventilated cladding.
Ideal for fast, clean installation with gas or powder-actuated tools—no pre-drilling needed.
Working in cold climates or high-altitude projects, where reduced embedment speeds up installation.

Benefits

Polypropylene body + Steel Screw – resists corrosion and prevents thermal bridging.
Short embedment depth (25 mm zone) – speeds installation and reduces drilling time and tool wear.
High load capacity – with pull-out strength up to 1.3 kN, and washer rigidity 1.0 kN/mm.
Pre-assembled with washer – ensures consistent fixing depth and easy use with optional insulation washers like TDW.
Cut-to-length flexibility – available in 75–295 mm lengths to match insulation thickness.

Product Details

Product Code	Drill Hole Diameter	Plate Diameter	Anchor Length	Hole Depth	Insulation Thickness	Carton Packing
TETX08095MS	8	60	95	35	60	100
TETX08115MS	8	60	115	35	80	100
TETX08135MS	8	60	135	35	100	100
TETX08155MS	8	60	155	35	120	100
TETX08175MS	8	60	175	35	140	100
TETX08195MS	8	60	195	35	160	100
TETX08215MS	8	60	215	35	180	100
TETX08235MS	8	60	235	35	200	100
TETX08255MS	8	60	255	35	220	100
TETX08275MS	8	60	275	35	240	100
TETX08295MS	8	60	295	35	260	100
