TETX PH – Insulation Fixing – Plastic Nail

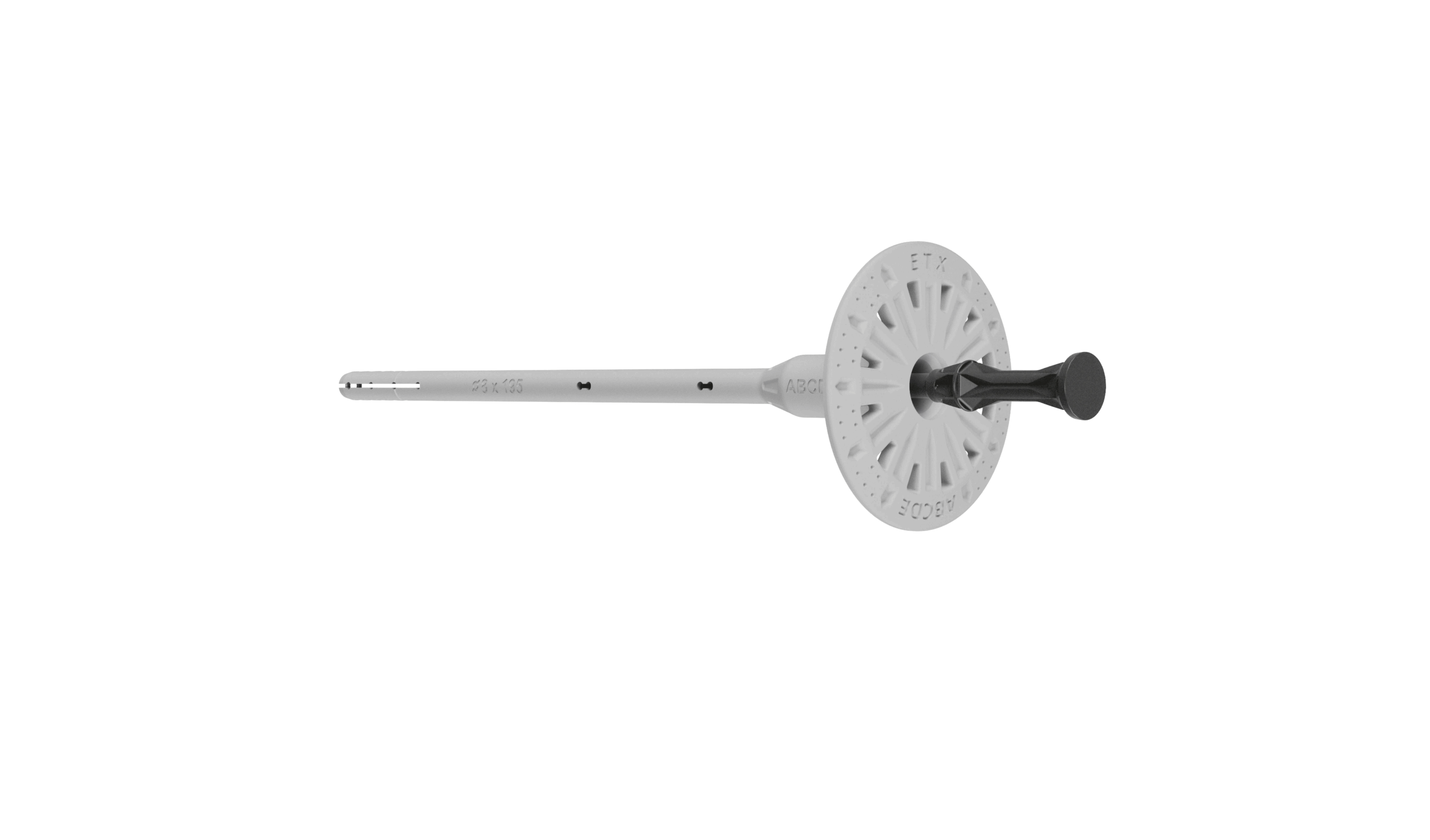

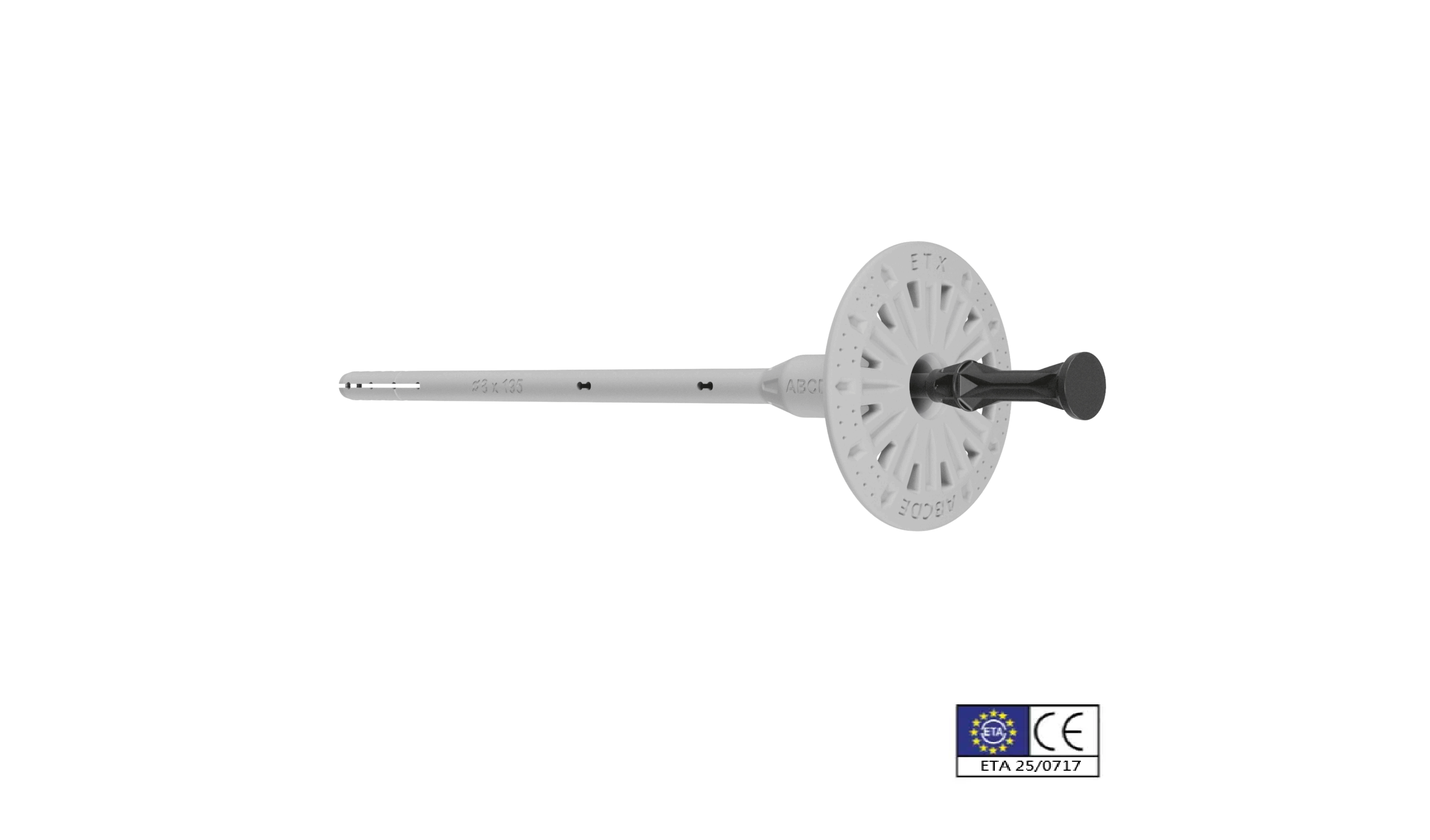

The Trutek ETX‑MH is an 8 mm polypropylene insulation anchor featuring a plastic pin. It securely fastens insulation boards in External Thermal Insulation Composite Systems (ETICS) on concrete and masonry substrates. It holds European Technical Assessment, ensuring certified performance.

Product Information

Usage

Fixing EPS or mineral wool boards in ETICS façade systems.
Use on reinforced concrete, solid brick, silicate blocks, and aerated concrete in both new builds and renovations.
Attaching insulation under roof parapets or ventilated cladding.
Ideal for fast, clean installation with gas or powder-actuated tools—no pre-drilling needed.
Working in cold climates or high-altitude projects, where reduced embedment speeds up installation.

Benefits

Polypropylene body + plastic pin – resists corrosion and prevents thermal bridging.
Short embedment depth (25 mm zone) – speeds installation and reduces drilling time and tool wear.
High load capacity – with pull-out strength up to 1.3 kN, and washer rigidity 1.0 kN/mm.
Pre-assembled with washer – ensures consistent fixing depth and easy use with optional insulation washers like Tiapp.
Cut-to-length flexibility – available in 75–295 mm lengths to match insulation thickness.

Product Details

Product Code	Drill Hole Diameter	Plate Diameter	Anchor Length	Hole Depth	Insulation Thickness	Carton Packing
TETX08075PH	8	60	75	35	40	100
TETX08095PH	8	60	95	35	60	100
TETX08115PH	8	60	115	35	80	100
TETX08135PH	8	60	135	35	100	100
TETX08155PH	8	60	155	35	120	100
TETX08175PH	8	60	175	35	140	100
TETX08195PH	8	60	195	35	160	100
TETX08215PH	8	60	215	35	180	100
TETX08235PH	8	60	235	35	200	100
TETX08255PH	8	60	255	35	220	100
TETX08275PH	8	60	275	35	240	100
TETX08295PH	8	60	295	35	260	100
