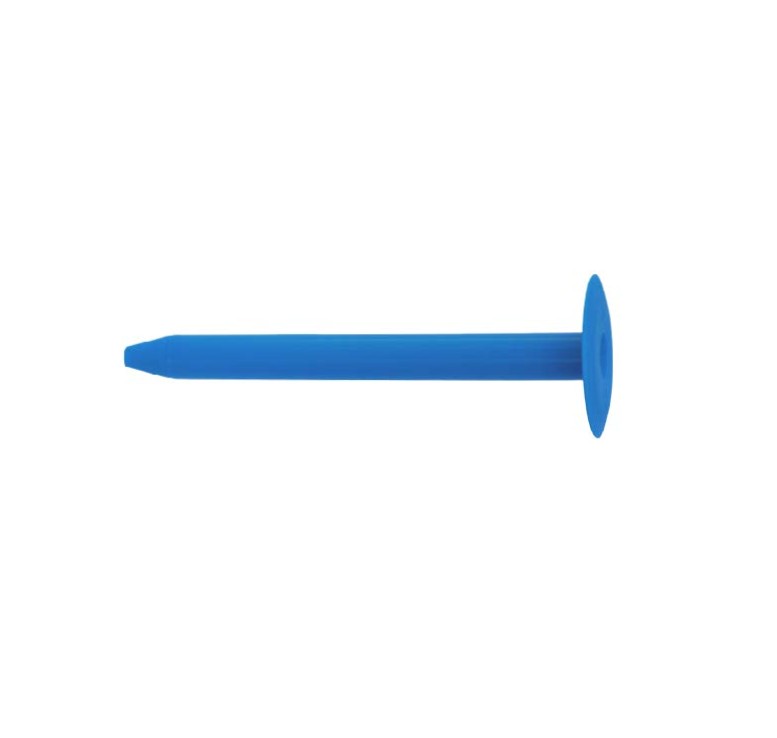

TIA FR – Flat Roof Insulation Anchor

The Trutek TIA FR Flat‑Roof Insulation Anchor is a robust, impact-resistant fixing designed for quick and secure installation through insulation layers on flat roofs.

For Use with either wood, concrete or self drilling screw.

Product Information

Usage

Systems of mechanically fastened flexible roof waterproofing membrane
Flat Roof Systems

Benefits

High Durability: Manufactured from impact-resistant material that ensures consistent mechanical performance over time, even in extreme temperatures.
Flexible Screw Compatibility: Suitable for use with a wide range of roofing fasteners—whether fixing into concrete, steel sheet, or timber substrates.
Self-Aligning Plate Design: The round plate simplifies positioning during installation, while the reinforced sleeve base is built to withstand high operational loads.
Quick Installation Ready: Engineered with an internal sleeve that supports pre-assembly with roofing screws, saving time and effort on-site.
Optimized Cone Geometry: Designed for smooth and rapid penetration through insulation layers without damage or deformation.
Certified Load Performance: Delivers maximum holding strength for both static and dynamic loads, compliant with relevant roofing anchor standards.

Product Details

Product Code	Anchor Diameter	Plate Diameter	Anchor Length	Hole Depth	Max Fixture Thickness	Carton Packing
TIA14055FR	14	50	55	35	80	100
TIA14085FR	14	50	85	35	110	100
TIA14105FR	14	50	105	35	130	100
TIA14135FR	14	50	135	35	170	100
TIA14155FR	14	50	155	35	190	100
TIA14165FR	14	50	165	35	200	100
TIA14185FR	14	50	185	35	230	100
TIA14235FR	14	50	235	35	270	100
TIA14285FR	14	50	285	35	340	100
TIA14325FR	14	50	325	35	380	100
