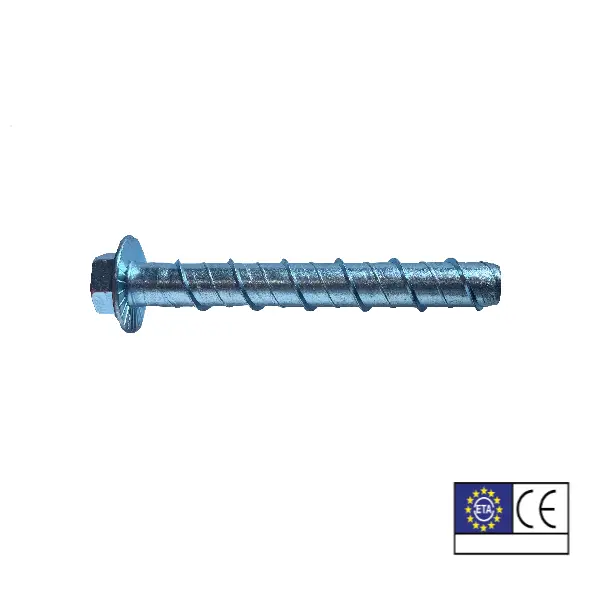

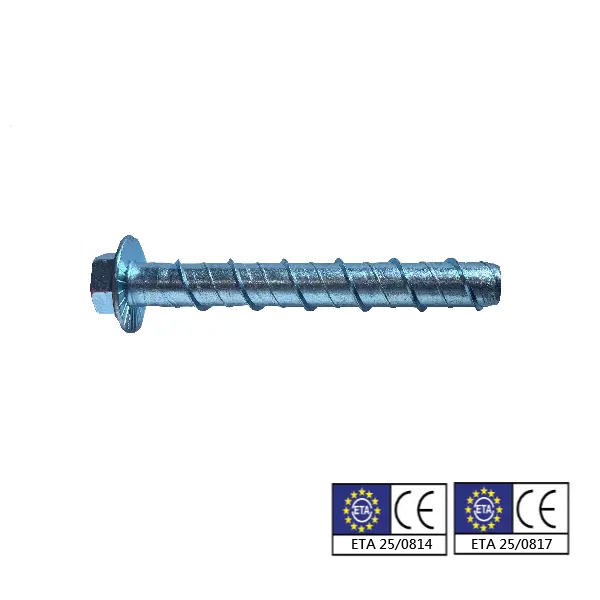

TUC – Concrete Bolt Hex Flange Head ETA Option 1

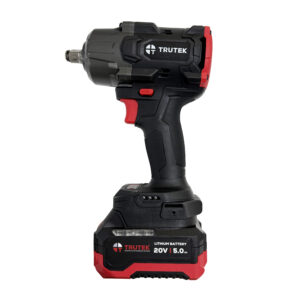

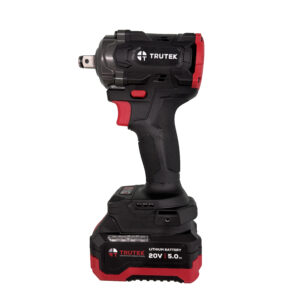

The Trutek TUC Concrete Bolt is a high-performance, ETA Option 1 approved mechanical anchor designed for secure and efficient fastening in both cracked and non-cracked concrete substrates. Its robust construction and versatile design make it suitable for a wide range of construction applications. Accompany with our TIW impact wrenches and Impact Sockets for a perfect installation.

Product Information

Usage

anchor intended for fastening elements of building structures, facades, barriers, handrails, etc. in the medium load range
fastening storage rack feet
fastening devices and installation elements to floors in cracked concrete
temporary fastening of formwork supports and pre-fabricated walls

Benefits

one anchor for installation in both non-cracked and cracked concrete
twice as fast as compared to segment anchors
possibility of adjusting the fixed element
possibility of complete disassembly of the anchor
the anchor does not introduce local stress in the ground, distributing the load along the entire depth of the hole

Product Details

Product Code	Drill Hole Diameter (mm)	Anchor Thread Dia (mm)	Anchor Length (mm)	Max Fixture Thickness (mm)	Min Hole Depth (mm)	Hex Head Dia A/F (mm)	Box Packing
TUC06035	6	8	35	–	45	10	100
TUC06040	8	10	40	5	45	10	100
TUC06050	8	10	50	5	45	10	100
TUC08060	8	10	60	5	60	13	100
TUC08075	8	10	75	5	60	13	100
TUC08100	8	10	100	25	60	13	100
TUC08130	8	10	130	55	60	13	50
TUC08150	8	10	150	75	60	13	50
TUC10060	10	12	60	15	75	15	50
TUC10075	10	12	75	15	75	15	50
TUC10100	10	12	100	15	75	15	50
TUC10130	10	12	130	45	75	15	25
TUC10150	10	12	150	65	75	15	25
TUC12100	12	14	100	35	65	16	50
TUC12130	12	14	130	45	85	16	25
TUC12150	12	14	150	65	85	16	20
TUC12200	12	14	200	115	85	16	20
TUC14100	14	16	100	15	85	18	20
TUC14130	14	16	130	30	100	18	15
TUC14150	14	16	150	50	100	18	10
TUC16105	16	18	105	5	100	20	10
TUC16150	16	18	150	50	100	20	10
TUC16200	16	18	200	100	100	20	10
